Part# 12

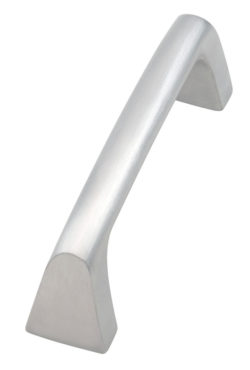

Cast Pull

Specify door thickness if other than 1-3/4"

Centers	5-1/2"
Overall	6-1/4"
Clearance	1-1/2"
Projection	2"
Base	5/8" × 1-1/4"
Finishes	US3/605 – Bright Brass US4/606 – Satin Brass US5/609 – Antique Brass US10/612 – Satin Bronze US10B/613 – Dark Bronze Oxidized US26/625 – Bright Chrome Plated US26D/626 – Satin Chrome Plated US28/628 – Satin Anodized Aluminum Flat Black Powder Coat Dark Bronze Powder Coat
Standard Fasteners	Type 1 - 1/4-20 X 2-1/4" Thru Bolt & Finish Washer (1-3/4" door) NOT AVAILABLE IN BACK TO BACK MOUNTING
ANSI	J401
