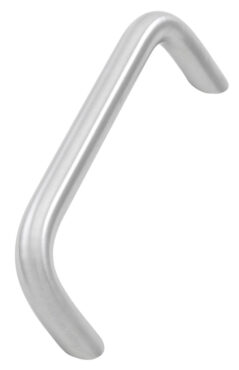

Part# 36C

Offset Pull 60º

Specify door thickness if other than 1-3/4"

Centers	10"
Overall	11"
Clearance	1-1/8"
Projection	2-1/8"
Offset	2"
Base	1" Oval
Finishes	US3/605 – Bright Brass US4/606 – Satin Brass US5/609 – Antique Brass US10/612 – Satin Bronze US10B/613 – Dark Bronze Oxidized US26/625 – Bright Chrome Plated US26D/626 – Satin Chrome Plated US28/628 – Satin Anodized Aluminum US32/629 – Bright Stainless Steel US32D/630 – Satin Stainless Steel Flat Black Powder Coat Dark Bronze Powder Coat
Material Size	1" Round
Standard Fasteners	Type 1MD -5/16-18 X 2-1/2 Thru Bolt & Finish Washer (1-3/4" door)
Mounting Options	Type 5MD Back to Back Mtg on 1-3/4" Door Type 6MD Concealed Mtg on Metal Door Type 7MD Concealed Mtg on Wood Door Type 9MD Decorative Blind Head
ANSI	J402
