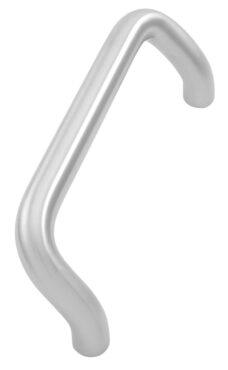

Part# 39-1D

Offset Pull 45º

Specify door thickness if other than 1-3/4"

Centers	12"
Overall	13"
Clearance	1-3/4"
Projection	2-3/4"
Offset	2-3/4"
Finishes	US3/605 – Bright Brass US4/606 – Satin Brass US5/609 – Antique Brass US10/612 – Satin Bronze US10B/613 – Dark Bronze Oxidized US26/625 – Bright Chrome Plated US26D/626 – Satin Chrome Plated US28/628 – Satin Anodized Aluminum US32/629 – Bright Stainless Steel US32D/630 – Satin Stainless Steel Flat Black Powder Coat Dark Bronze Powder Coat
Material Size	1" Round
Standard Fasteners	Type 1MD -5/16-18 X 2-1/2 Thru Bolt & Finish Washer (1-3/4" door)
Mounting Options	Type 5MD Back to Back Mtg on 1-3/4" Door Type 6MD Concealed Mtg on Metal Door Type 7MD Concealed Mtg on Wood Door Type 9MD Decorative Blind Head Type 10MD Back to Back Mtg on Glass Door
ANSI	J402
