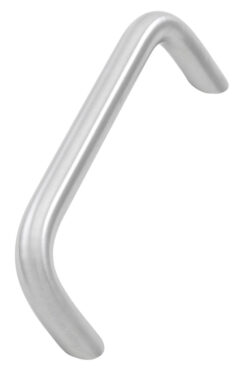

Part# M36G

Offset Pull 60º

Specify door thickness if other than 1-3/4"

Centers	18"
Overall	19-1/4"
Clearance	1-1/2"
Projection	2-3/4"
Offset	3-1/2"
Base	1-1/4" Oval
Finishes	US3/605 – Bright Brass US4/606 – Satin Brass US5/609 – Antique Brass US10/612 – Satin Bronze US10B/613 – Dark Bronze Oxidized US26/625 – Bright Chrome Plated US26D/626 – Satin Chrome Plated US28/628 – Satin Anodized Aluminum US32/629 – Bright Stainless Steel US32D/630 – Satin Stainless Steel Flat Black Powder Coat Dark Bronze Powder Coat
Material Size	1-1/4" Round
Standard Fasteners	Type 1MD - 5/16-18 × 2-1/2 Thru Bolt & Finish Washer (1-3/4" door)
Mounting Options	Type 5MD Back to Back Mtg on 1-3/4" Door Type 6MD Concealed Mtg on Metal Door Type 7MD Concealed Mtg on Wood Door Type 9MD Decorative Blind Head
ANSI	J402
