Part# 46

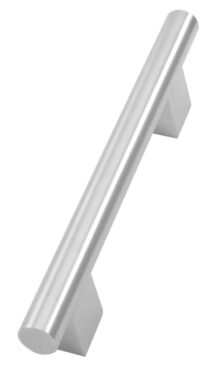

Round Door Pull

Specify door thickness if other than 1-3/4"

Centers	8"
Overall	12"
Clearance	1-1/2"
Projection	2-1/2"
Base	1-1/2" × 1-1/2"
Material Size	1" Dia.
Finishes	US3/605 – Bright Brass US4/606 – Satin Brass US5/609 – Antique Brass US10/612 – Satin Bronze US10B/613 – Dark Bronze Oxidized US26/625 – Bright Chrome Plated US26D/626 – Satin Chrome Plated US32/629 – Bright Stainless Steel US32D/630 – Satin Stainless Steel Flat Black Powder Coat Dark Bronze Powder Coat
Standard Fasteners	Type 1 -1/4-20 X 2-1/4" Thru Bolt & Finish Washer (1-3/4" door)
Mounting Options	Type 5 Back to Back Mtg on 1-3/4" Door Type 6 Concealed Mtg on Metal Door Type 7 Concealed Mtg on Wood Door Type 9 Decorative Blind Head Type 10 Back to Back Mtg on Glass Door
ANSI	J401
