Part# 455

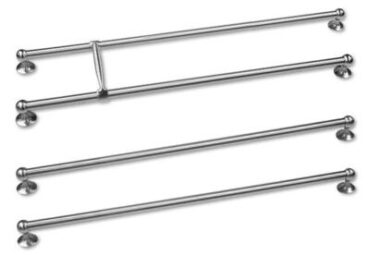

Adjustable Push /Pull Unit
Unit consists of (2) 454 Push Bars and (1) 453 Pull Bar
Clearance | 1-1/2" |
---|---|
Projection | 2-1/2" |
Base | 2" Rd x 2-1/2" |
Fasteners |
Pull Side - Type 1 Thru Bolt MS Push Side - Type 2 Surface Mount |
Material Size | 1" Rd Tube Adjustable up to 36" |
Material | Brass |
Finishes |
US3/605 – Bright Brass US4/606 – Satin Brass US26/625 – Bright Chrome Plated US26D/626 – Satin Chrome Plated Flat Black Powder Coat Dark Bronze Powder Coat |
ANSI | J504 |
