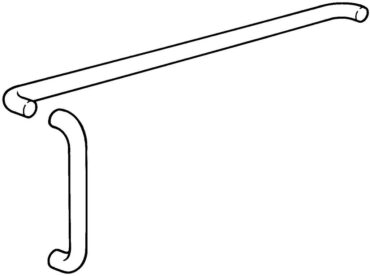

Part# 422 × 26B

Push/Pull Bar Set

Specify push bar center to center dimension

Clearance	Push Bar: 1-1/8" Pull: 1-3/4"
Projection	Push Bar: 2-1/8" Pull: 2-3/4"
Fasteners	Standard: (2) Type 1MD- 5/16"-18 × 2-1/2 Thru Bolts and Finish Washers (1) Type 5MD - Back to Back Conehead
Material Size	Push Bar/Pull: 1" Ø Solid Pull: 8" Center to Center
Material	Aluminum Brass Bronze Stainless Steel
Finishes	US3/605 – Bright Brass US4/606 – Satin Brass US5/609 – Antique Brass US10/612 – Satin Bronze US10B/613 – Dark Bronze Oxidized US26/625 – Bright Chrome Plated US26D/626 – Satin Chrome Plated US28/628 – Satin Anodized Aluminum US32/629 – Bright Stainless Steel US32D/630 – Satin Stainless Steel Flat Black Powder Coat Dark Bronze Powder Coat
ANSI	J504
