#422 × 39B — Push Pull Bar Set

Cut Sheet: Print | Email | Download

Part# 422 × 39B

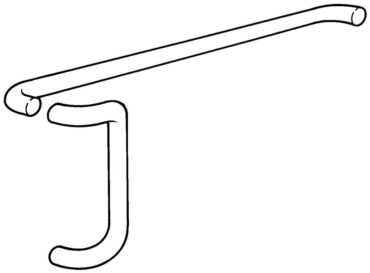

Push Pull Bar Set

Specify push bar center to center dimension

Clearance Push Bar: 1-1/8" Pull: 1-3/4"
Projection Push Bar: 2-1/8" Pull: 2-3/4"
Fasteners Standard: (2) Type 1MD- 5/16"-18 × 2-1/2 Thru Bolts and Finish Washers
(1) Type 5MD - Back to Back Conehead
Material Size Push Bar/Pull: 1" Ø Solid
Pull: 8" ctc 90 degree offset
Material Aluminum
Brass
Bronze
Stainless Steel
Finishes US3/605 – Bright Brass
US4/606 – Satin Brass
US5/609 – Antique Brass
US10/612 – Satin Bronze
US10B/613 – Dark Bronze Oxidized
US26/625 – Bright Chrome Plated
US26D/626 – Satin Chrome Plated
US28/628 – Satin Anodized Aluminum
US32/629 – Bright Stainless Steel
US32D/630 – Satin Stainless Steel
Flat Black Powder Coat
Dark Bronze Powder Coat
ANSI J504
