Part# 422 × 39D

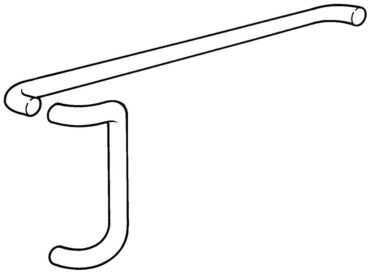

Push Pull Bar Set
Specify push bar center to center dimension.
Clearance | Push Bar: 1-1/8" Pull: 1-3/4" |
---|---|
Projection | Push Bar: 2-1/8" Pull: 2-3/4" |
Fasteners |
Standard: (2) Type 1MD - 5/16-18 × 2-1/2 Thru Bolts and Finish Washers (1) Type 5MD - Back to Back Conehead Fastener |
Material Size |
Push Bar/Pull: 1" Ø Solid Pull: 12" ctc 90 degree offset |
Material |
Aluminum Brass Bronze Stainless Steel |
Finishes |
US3/605 – Bright Brass US4/606 – Satin Brass US5/609 – Antique Brass US10/612 – Satin Bronze US10B/613 – Dark Bronze Oxidized US26/625 – Bright Chrome Plated US26D/626 – Satin Chrome Plated US28/628 – Satin Anodized Aluminum US32/629 – Bright Stainless Steel US32D/630 – Satin Stainless Steel Flat Black Powder Coat Dark Bronze Powder Coat |
ANSI | J504 |
