Part# 417

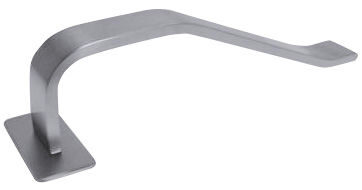

Lever Protector Bar
Standard Center to Center dimension 12". Modification available. Advise door thickness other than 1-3/4".
| Clearance | -- |
|---|---|
| Projection | 3-1/4" |
| Base | 1-3/4" × 3-1/2" |
| Fasteners | Type 1 - 1/4-20 Truss Head Thru Bolts for 1-3/4" Door |
| Fastener Options | Security Fasteners |
| Material Size | 3/8" × 1-1/2" |
| Material |
Brass Bronze Stainless Steel Aluminum |
| Finishes |
US3/605 – Bright Brass US4/606 – Satin Brass US5/609 – Antique Brass US10/612 – Satin Bronze US10B/613 – Dark Bronze Oxidized US26/625 – Bright Chrome Plated US26D/626 – Satin Chrome Plated US28/628 – Satin Anodized Aluminum US32/629 – Bright Stainless Steel US32D/630 – Satin Stainless Steel Flat Black Powder Coat Dark Bronze Powder Coat |
