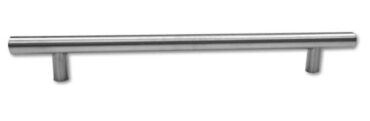

Part# M424

Push Bar with Posts

Specify center to center dimension. Advise door thickness other than 1-3/4"

Clearance	1-1/2"
Projection	2-3/4"
Base	1" Rd
Fasteners	Type 1MD - 5/16-18 × 2-1/2 Thru Bolt & Finish Washer
Fastener Options	Type 5MD Back to Back Mtg on 1-3/4" Door Type 6MD Concealed Mtg on Metal Door Type 7MD Concealed Mtg on Wood Door Type 9MD Decorative Blind Head Type 10MD Back to Back Mtg on Glass Door
Material Size	1-1/4" Rd
Material	Aluminum Brass Bronze Stainless Steel
Finishes	US3/605 – Bright Brass US4/606 – Satin Brass US5/609 – Antique Brass US10/612 – Satin Bronze US10B/613 – Dark Bronze Oxidized US26/625 – Bright Chrome Plated US26D/626 – Satin Chrome Plated US28/628 – Satin Anodized Aluminum US32/629 – Bright Stainless Steel US32D/630 – Satin Stainless Steel Flat Black Powder Coat Dark Bronze Powder Coat
ANSI	J501
