Part# VP4240
Straight Post Mount - Square Ends
Specify Center to Center and Overall Dimension. Intermediate Post recommended for spans over 80". Add suffix "IP" to part number (Example: VP4240-IP).
| Size | 1" Diameter x 2-1/2" Projection |
|---|---|
| Material |
Aluminum Brass Bronze Stainless Steel |
| Fasteners |
• TYPE 1MD - Single Mount - Thru Bolt - 5/16-18 × 2-1/2" T.B. & Finish Washer • TYPE 5MD - Back to Back Mount - 5/16-18 x 2-3/8" Conehead; for Wood or Metal doors • TYPE 6MD - Single Mount - Concealed - 5/16-18 Tapped Thread in Door; for Metal doors • TYPE 6HDR - Single Mount - Concealed - 1/4-20 x 1” with Rivnut; for Metal Doors • TYPE 7MD - Single Mount - Concealed - #10 × 2" Wood Screw; for Wood doors • TYPE 9MD - Single Mount - Decorative Blind Head - 5/16-18 stud with cap; S pecify Wood, Metal or Glass door and thickness • TYPE 10MD - Back to Back Mount - 5/16-18 × 1-1/4" Conehead with 5/8” Ø Plexiglass Sleeve, Metal and Vinyl Washers; for Glass doors; specify door thickness |
| Finishes |

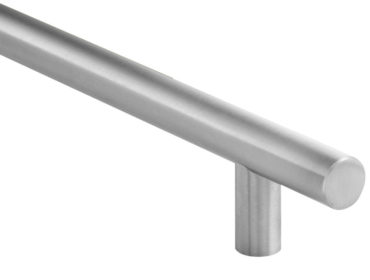

US3/605 – Bright Brass US4/606 – Satin Brass US5/609 – Antique Brass US10/612 – Satin Bronze US10B/613 – Dark Bronze Oxidized US28/628 – Satin Anodized Aluminum US32/629 – Bright Stainless Steel US32D/630 – Satin Stainless Steel (SHOWN IN PHOTO) Flat Black Powder Coat Dark Bronze Powder Coat |
| Options |
Leather Wrapped Powder Coat Split Finish |
