Part# VP7740

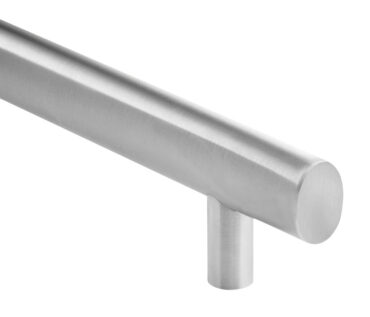

Elliptical Oval Straight Post Mount - Square Ends
Specify Center to Center and Overall Dimension. Intermediate Post recommended for spans over 80". Add suffix "IP" to part number (Example: VP7740-IP).
| Size | 1-1/16" × 1-5/8" × 1-1/2" Clearance x 3-1/8" Projection |
|---|---|
| Material | Stainless Steel |
| Fasteners |
• TYPE 1MD - Single Mount - Thru Bolt –5/16-18 × 2-1/2" T.B. & Finish Washer • TYPE 5MD - Back to Back Mount – 5/16-18 x 2-3/8" Conehead; for Wood or Metal doors • TYPE 6MD - Single Mount - Concealed – 5/16-18 Tapped Thread in Door; for Metal doors • TYPE 7MD - Single Mount - Concealed - #10 × 1-1/2" Wood Screw; for Wood doors • TYPE 9MD - Single Mount - Decorative Blind Head – 5/16-18 stud with cap; Specify Wood, Metal or Glass door and thickness • TYPE 10MD - Back to Back Mount – 5/16-18 × 1-1/4" Conehead with 5/8” Ø Plexiglass Sleeve, Metal and Vinyl Washers; for Glass doors; specify door thickness |
| Finishes |
US32/629 – Bright Stainless Steel US32D/630 – Satin Stainless Steel Flat Black Powder Coat Dark Bronze Powder Coat |
