Part# VP8400

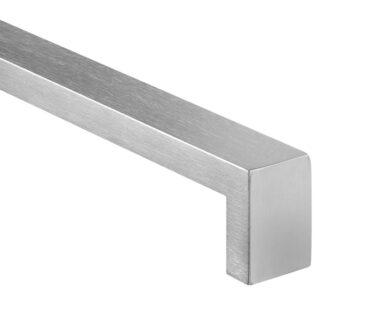

Rectangular Bar - Top and Bottom Square Ends
Specify Center to Center and Overall Dimension. Intermediate Post recommended for spans over 80". Add suffix "IP" to part number (Example: VP8400-IP).
| Size | 1/2" × 1-1/2" × 2" Projection |
|---|---|
| Material | Stainless Steel |
| Fasteners |
• TYPE 1 - Single Mount - Thru Bolt – ¼-20 × 2-1/2" T.B. & Finish Washer • TYPE 5 - Back to Back Mount – ¼-20 x 2-3/8" Conehead; for Wood or Metal doors • TYPE 6 - Single Mount - Concealed – ¼-20 Tapped Thread in Door; for Metal doors • TYPE 7 - Single Mount - Concealed - #8 × 1-1/2" Wood Screw; for Wood doors • TYPE 9 - Single Mount - Decorative Blind Head – ¼-20 stud with cap; Specify Wood, Metal or Glass door and thickness • TYPE 10 - Back to Back Mount – ¼-20 × 1-1/4" Conehead with 5/8” Ø Plexiglass Sleeve, Metal and Vinyl Washers; for Glass doors; specify door thickness |
| Finishes |
US32/629 – Bright Stainless Steel US32D/630 – Satin Stainless Steel Flat Black Powder Coat Dark Bronze Powder Coat |
